- Stage
1 V8
- Factory
Specification
General Configuration

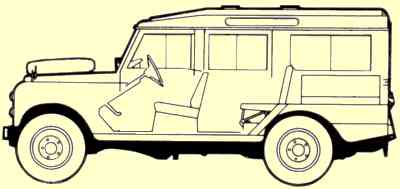

The Stage 1 V8 was available as
standard as a truck-cab, van sided hard-top or a 10 or 12 seat
station wagon, depending on the market for which it was destined,
all based on the Series III 109 inch chassis. A high capacity
pick-up (HCPU) laterr became available. In addition, the vehicle
could be purchased as a chassis cab for specialist conversions
and all models could be specified with the County trim pack when

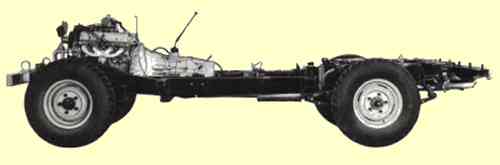

that was introduced.The chassis itself was adapted to accomodate
the V8 engine and gearbox, with no.1 crossmember being moved forward
beneath the newly relocated grill, and the gearbox crossmember
being of the removable type - a first on the utility models.
As well as the range of six colours
available on the standard Series III Land Rover, the Stage 1 V8
could also be specified in one of four additional colours: Java
Green, Masai Red, Inca Yellow and Pageant Blue. Russet Brown later
became available with the County Station Wagon.
|
Approximate Dimensions and Weights |
|
|
Length: |
4.44m (4.58m for station wagon with
rear mounted spare wheel |
|
Width: |
1.68m |
|
Height: |
1.99m (2.0m for station wagon with
safari roof) |
|
Wheelbase: |
2.77m (109 inches) |
|
Track front and rear: |
1.33m |
|
Ground clearance: |
209mm |
|
Turning circle: |
14.3m |
|
Kerb weight: |
Truck cab 1601kg, 10 seat SW 1809kg,
12 seat SW 1828kg |
|
Gross weight: |
2710kg |
|
Gross train weight: |
6710kg |
|
Permissable trailer loads |
|
- fully braked: |
4000kg |
|
- with over-run brakes: |
2000kg |
|
- without brakes: |
500kg |
|
Max. nose weight: |
75kg |
|
Max. roof rack load: |
50kg |
|

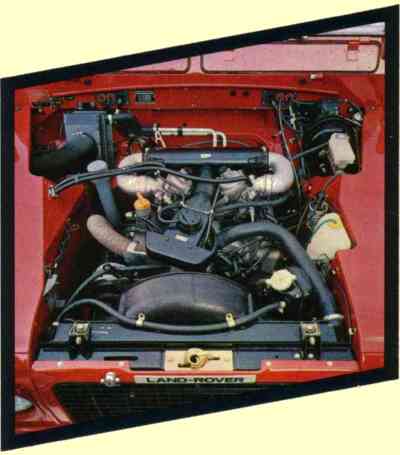

Bore: |
88.9mm (3.500 in.) |
|
Stroke: |
71.12mm (2.800 in) |
|
Number of cylinders: |
8 |
|
Cylinder capacity: |
3528 cc |
|
Compression ratio: |
8.13:1 |
|
BHP: |
90.7 @3500 +/-250 revs/min |
|
Maximum torque: |
166.4 lb ft @ 2000 revs/min |
|
Firing order: |
1, 8, 4, 3, 6, 5, 7, 2 |
|
Spark plug type: |
Champion N12Y or Unipart GSP131 |
|
Spark plug gap: |
0.80mm (0.030 in.) |
|
Points gap: |
0.35 - 0.40mm (0.014 - 0.016 in.) |
|
Dwell angle: |
26 - 28 degrees @ 550 - 650 revs/min |
|
Ignition timing, dynamic; emission
controlled: |
TDC mark on crankshaft pulley |
|
Ignition timing, dynamic; non-emission
controlled: |
6 degrees BTDC @ 650 revs/min |
|
Ignition timing, static; all models: |
TDC |
|
Oil pressure: |
2.11 to 2.81 kg/sq.cm (30 to 40
lb/sq.in.) at 50mph in top gear with engine warm |
|
Transmission Data |
|
|
Main Gearbox |
- Type LT95
- Single helical constant mesh
with syncromesh on all forward gears.
|
|
Transfer Box |
- Integral with main box
- Two-speed reduction on maan
gearbox output. Front and rear drive permanently engaged via
vacuum operated lockable differential.
|
|
Gear Ratios |
|
Main gearbox: |
Top |
Direct |
|
|
|
Third |
1.505:1 |
|
|
|
Second |
2.448:1 |
|
|
|
First |
4.069:1 |
|
|
|
Reverse |
3.664:1 |
|
|
Transfer gearbox: |
High |
1.336:1 |
|
|
|
Low |
3.321:1 |
|
|
Final drive ratio: |
|
In high transfer |
In low transfer |
|
|
Top |
4.73:1 |
11.76:1 |
|
|
Third |
7.12:1 |
17.69:1 |
|
|
Second |
11.58:1 |
28.78:1 |
|
|
First |
19.24:1 |
47.81:1 |
|
|
Reverse |
17.33:1 |
43.05:1 |
|
|
|
|
|
|
Axles |
- Front: Rover, Rear: Salisbury
- Differential ratios: 3.54:1
|
