Restoration

Technical questions and answers
Cliff4WD
Posts: 142
Joined: Fri Aug 10, 2018 2:39 pm
Location: Rye, East Sussex, UK

Re: Restoration

Post by Cliff4WD »

With the drive unit mounted, I was able to align the half shaft into the diff sun gear and locate the cv inside the swivel housing. Only having 2 hands, I didn't manage any photos while I did this as although it sound pretty straight forward (which it is), I found the CV would bind on the swivel housing opening unless I held it completely centred and straight. Had me worried for a bit that it wasn't going to fit in the machined swivel balls. With a bit of very gentle persuasion, it all went together nicely.

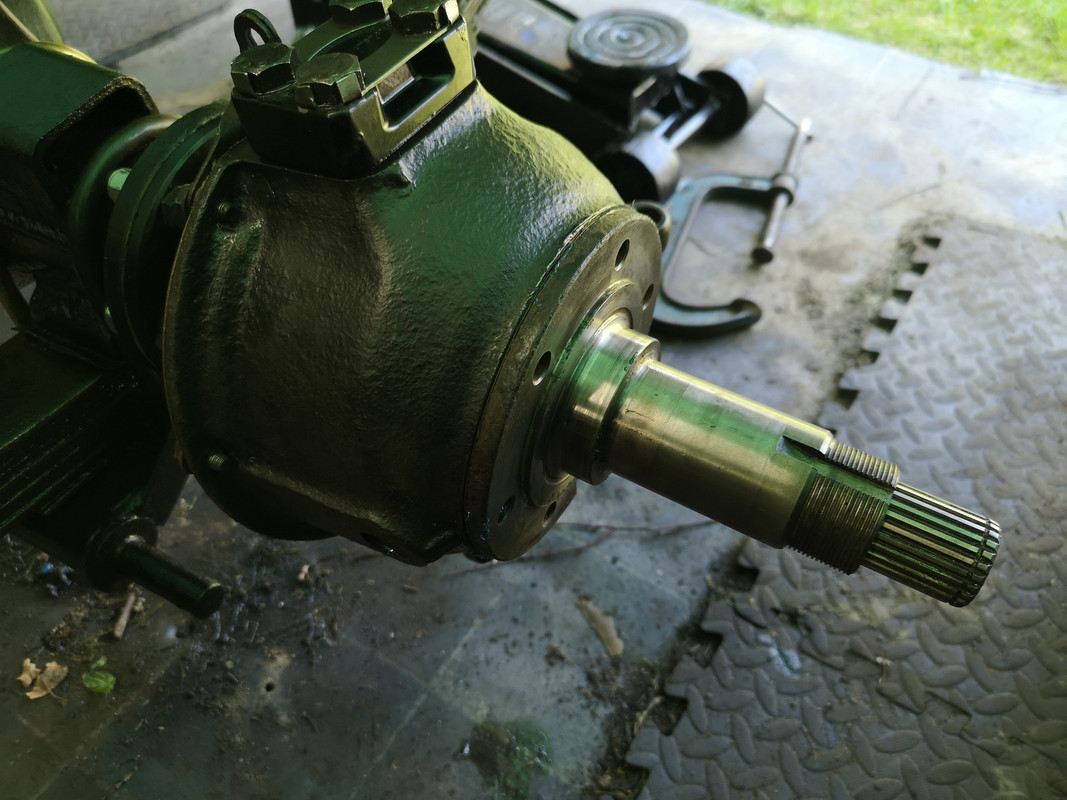

With the half shaft in place, on went the stub axle

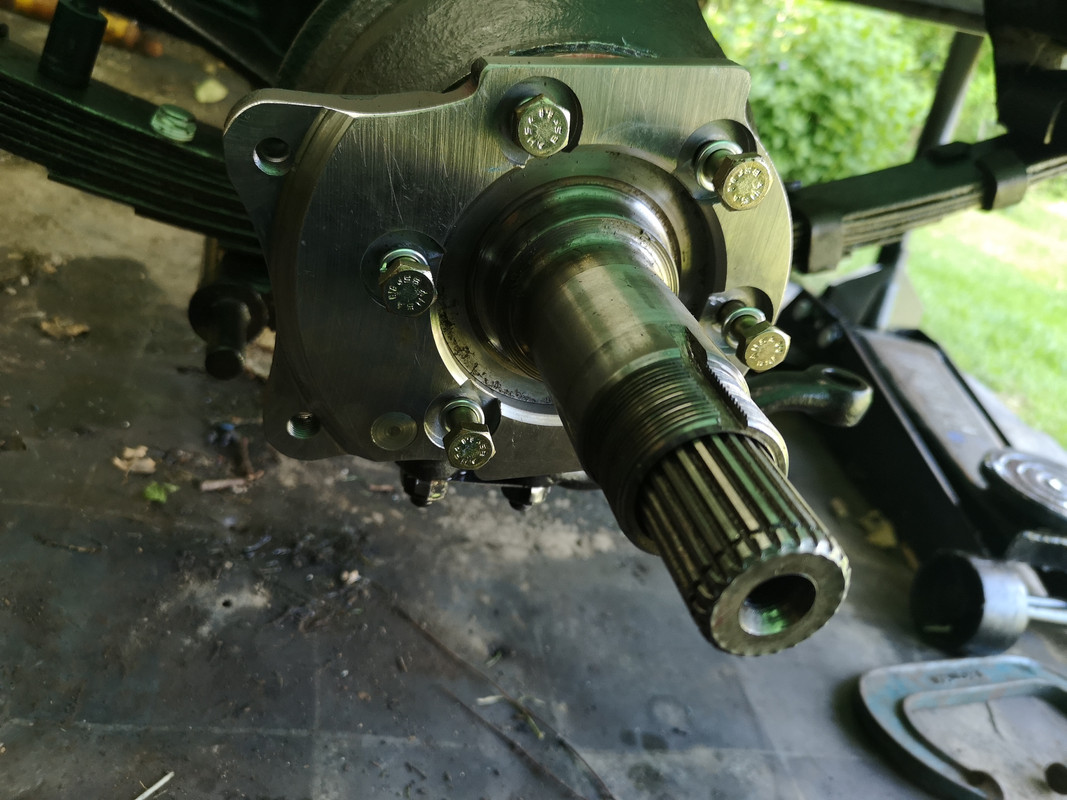

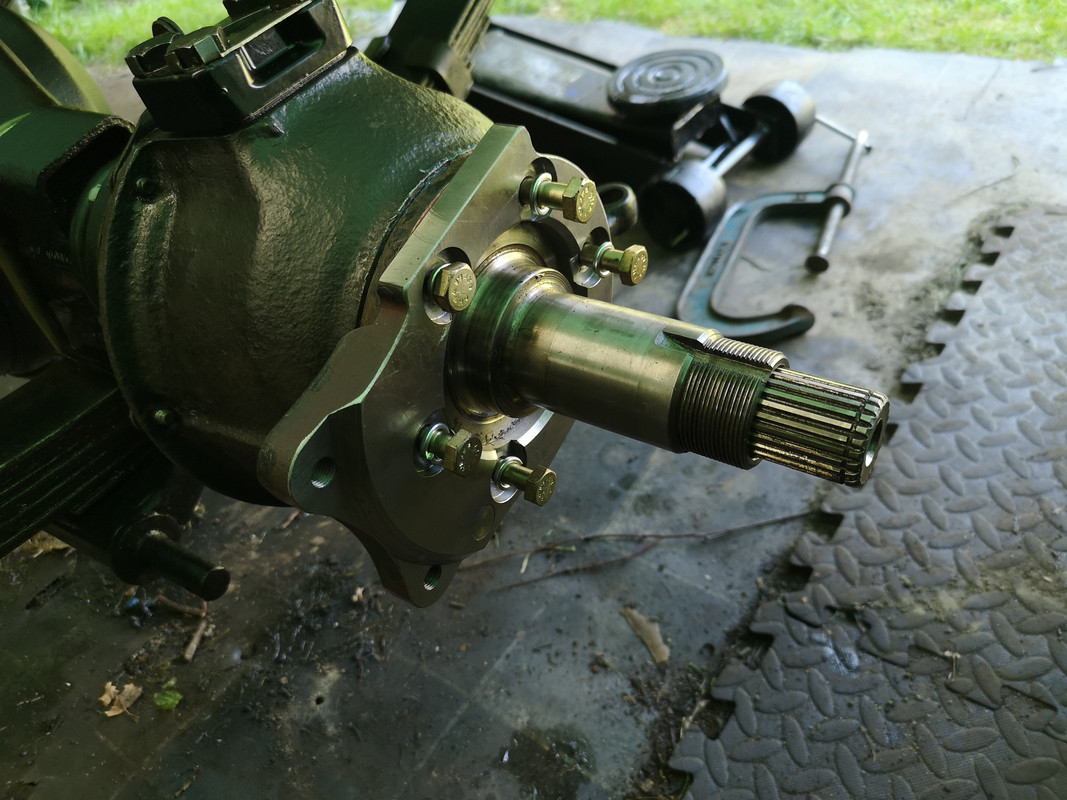

..and the moment we've all been waiting for, on went the first of the new caliper mounting brackets.


Nice new bolts and spring washers too, except they turned out to be the wrong size! I ordered the correct part number so will have to work out what that's about.


So cleaned the old bolts and reused them with the new spring washers.


I filled the swivel with one shot grease and fitted the new filler plug supplied by zeus with the brake kit. They were stainless and much better quality than the ones I'd ordered.


Next, it's hub rebuild.
Cliff

1981 109 V8 Stage 1
2000 Discovery 2 Td5

109 V8: viewtopic.php?f=6&t=2161
My Disco Thread: http://www.thed2boysclub.co.uk/viewtopi ... =3&t=58130

LAND ROVER. TURNING OWNERS INTO PAUPERS FOR 70 YEARS

Cliff4WD
Posts: 142
Joined: Fri Aug 10, 2018 2:39 pm
Location: Rye, East Sussex, UK

Re: Restoration

Post by Cliff4WD »

Hub rebuild time.

After giving the hub a good wash and getting rid of all the old grease, it was workbench time for it. Removed the seal and bearings and pondered race removal.


Decided straight forward drifting method would suffice so, hammer and soft steel punch in hand...


...knocked the race out.


...and the same the other side


...so both bearing races out


Now for the studs. I'm going to bash one and see if it knocks out


Success. Knocked straight out


...so did the rest


That's all five out


Now to fit the extended set


Gave the hub a good wire brush clean first and brushed on some rust converter



...and resumed the stud replacement




That's the studs in


Now fit the new bearing races. I was going to heat the hub in the oven and put the bearings in the freezer but I gave in to my impetuous streak and decided to drift them in the same way the old ones came out. I used the old race as a drift.


Greased the bearing


...and fitted the seal



It was then fit on the stub axle time


Getting near tea time and need to tidy up and put stuff away so called it a day. Will resume and set bearing preload and a fit the cap. Then it's the brake caliper and rotor disc. To be continued.
Cliff

1981 109 V8 Stage 1
2000 Discovery 2 Td5

109 V8: viewtopic.php?f=6&t=2161
My Disco Thread: http://www.thed2boysclub.co.uk/viewtopi ... =3&t=58130

LAND ROVER. TURNING OWNERS INTO PAUPERS FOR 70 YEARS

Fish
Posts: 35
Joined: Fri Dec 28, 2018 7:35 pm

Re: Restoration

Post by Fish »

Great to see the updates Cliff. You're doing a lovely job and keeps me going at my Chassis, nice to see it coming back together. I've got a fair while before I start catching up..

Cliff4WD
Posts: 142
Joined: Fri Aug 10, 2018 2:39 pm
Location: Rye, East Sussex, UK

Re: Restoration

Post by Cliff4WD »

I have a dial indicator so may as well use it. Put the nut and spacer on and checked bearing preload between 0.05 - 0.1mm as per WSM.


Lock nut on and bent over the lock washer


At last, I could put a disc rotor on



It was now time to prepare the new brake calliper. Fitted bleed nipple and removed the pads that it was supplied with already fitted. It will be a while before the vehicle is moved so I don't want pads seizing on the discs while it sits and goes nowhere.


Bolted calliper to its mounting



Very happy, all seems good, so fitted the drive flange


Job done!


Checked wheel dod indeed clewr the calliper


All good. Wheel gives required clearance so will go ahead and get the wheels refurbed and booted.


Deciding which boots to go with will be interesting.
Cliff

1981 109 V8 Stage 1
2000 Discovery 2 Td5

109 V8: viewtopic.php?f=6&t=2161
My Disco Thread: http://www.thed2boysclub.co.uk/viewtopi ... =3&t=58130

LAND ROVER. TURNING OWNERS INTO PAUPERS FOR 70 YEARS

disco2hse
Posts: 1530
Joined: Sun Apr 27, 2008 3:51 am
Location: Auckland NZ

Re: Restoration

Post by disco2hse »

So will you be putting spacers on the rear axle?
Alan

1983 ex-army FFR 109 Stage 1
2005 Disco 2 HSE TD5

Cliff4WD
Posts: 142
Joined: Fri Aug 10, 2018 2:39 pm
Location: Rye, East Sussex, UK

Re: Restoration

Post by Cliff4WD »

Hahaha, yes, well, I'll have to do something to balance things won't I. I could do rear discs too but then I'll have to think about brake balance as well then. Maybe spacers will suffice if needed. I need to measure things and find out exactly what's what. Same wheels on the rear of course and the axle isn't any wider so spacers shouldn't be needed should they? 🤔 I'm too tired right now to think it through. 💤
Cliff

1981 109 V8 Stage 1
2000 Discovery 2 Td5

109 V8: viewtopic.php?f=6&t=2161
My Disco Thread: http://www.thed2boysclub.co.uk/viewtopi ... =3&t=58130

LAND ROVER. TURNING OWNERS INTO PAUPERS FOR 70 YEARS

disco2hse
Posts: 1530
Joined: Sun Apr 27, 2008 3:51 am
Location: Auckland NZ

Re: Restoration

Post by disco2hse »

I wasn't sure if the discs added extra length to the axle. I know on other disc conversions I've seen, the front wheels were wider apart.

I guess if that is not the case, then the other issue with wider tyres will be the possibility that they will rub on the inner rear guards during flex.
Alan

1983 ex-army FFR 109 Stage 1
2005 Disco 2 HSE TD5

Cliff4WD
Posts: 142
Joined: Fri Aug 10, 2018 2:39 pm
Location: Rye, East Sussex, UK

Re: Restoration

Post by Cliff4WD »

Well the half shafts haven't gotten any longer. 😂

The standard 109 wheels are 5.5" and the one's I have to replace them are 7" wide. There is a bit more room on the 7Js to allow for the extra diameter of the calliper. The original 16"x5.5 would have been fine but for their design. I don't actually want to put wide tyres on as it doesn't have power steering of course and I don't want to be struggling with over wide tyres. I want to put as narrow as is sensible on a 7J rim. I quite liked the look of the 7.5 x 16" standard and I think narrower is probably better for off road on mud etc. anyway. I'm not quite so au fait with tyre sizes and wheel width combinations, but I'll have to do a bit of research and work it all out. I think there's plenty of room for whatever I end up putting on as the extra width appears to be on the outside (+ve offset ?)
Cliff

1981 109 V8 Stage 1
2000 Discovery 2 Td5

109 V8: viewtopic.php?f=6&t=2161
My Disco Thread: http://www.thed2boysclub.co.uk/viewtopi ... =3&t=58130

LAND ROVER. TURNING OWNERS INTO PAUPERS FOR 70 YEARS

Cliff4WD
Posts: 142
Joined: Fri Aug 10, 2018 2:39 pm
Location: Rye, East Sussex, UK

Re: Restoration

Post by Cliff4WD »

Although I had no intention of boring everyone by repeating my work in fitting the nearside swivel, etc., I encountered a bit of a problem when trying to fit the CV back inside the assembled ball and housing. The offside had been a tight fit that needed gentle persuasion to get it in place, but this side was just not going in and was jamming in the process of trying. On closer inspection, seems that the swivel ball casting was protruding into the housing opening (if you get what I mean). I've highlighted what I'm talking about in the photo below.



I couldn't see what I could do to correct the situation by any way other than to grind it down a bit further so that the CV could get past, so that's what I did. I didn't want the hassle of stripping it all back apart and returning it to DDE.


Fortunately, from there on in it all went fairly smoothly and much faster once you know what you're doing.

Here's it all together with brake disc and callipers on both sides and NOS steering track rod fitted. (I found a genuine LR 1-ton version so grabbed it.)



Next task is the drag link and steering damper. I started refurbing this but took me hours trying to get one ball joint out. Took a combination of brute force, penetrating fluid, and lots of heat, but got there. The other end looks and feels good so think I'll leave it in place. Anyway, another parts order in and have a rest while I wait for it to arrive.
Cliff

1981 109 V8 Stage 1
2000 Discovery 2 Td5

109 V8: viewtopic.php?f=6&t=2161
My Disco Thread: http://www.thed2boysclub.co.uk/viewtopi ... =3&t=58130

LAND ROVER. TURNING OWNERS INTO PAUPERS FOR 70 YEARS

v8alligator
Posts: 33
Joined: Tue Jun 05, 2012 7:24 pm
Location: Haslemere surrey

Re: Restoration

Post by v8alligator »

Hi Cliff.

Nice write up on your axle build.

To help with your swivel CV Clearance. The problem you have highlighted is due to 2 reasons .. The first LR had this problem with all Stage ones. Early Range Rover and early 110... which they later addressed by changing the outer diameter of the CV joint to give more clearance.

The other reason you can have is because the steering swivel housing has not be shimmed correctly. Most people only shim the top pin.. but the correct way is to set the steering pre load and then split the shim pack between the top and bottom pins so the casting is centralised on the chrome swivel and therefore the CV and half shafts run centralised in the axle and steering housings.

I have built a few front axles using our DDE parts and have not needed to grind anymore clearance in any of our parts.

Hope this helps and helps others who may come up against the same issues.

Cliff4WD
Posts: 142
Joined: Fri Aug 10, 2018 2:39 pm
Location: Rye, East Sussex, UK

Re: Restoration

Post by Cliff4WD »

I did rather suspect that it was a centralising issue rather than anything to do with the ball. Makes sense as it was this swivel that I was unable to separate the steering arm from as it's seized on. Normally I would have persevered and got it apart somehow, but not wanting to damage something so hard to replace, decided to leave alone as the pivot is good.
The shimming point is something I thought about at the time as it makes sense to shim bottom as well as top, but I followed the WSM instruction to only shim top pin for preload setting. I should have thought deeper and checked for clearance before carrying on.
I thought I'd pass on my experience as it no doubt may catch out someone else too.

I'll be in touch for more stuff in due course. 👍🏻
Cliff

1981 109 V8 Stage 1
2000 Discovery 2 Td5

109 V8: viewtopic.php?f=6&t=2161
My Disco Thread: http://www.thed2boysclub.co.uk/viewtopi ... =3&t=58130

LAND ROVER. TURNING OWNERS INTO PAUPERS FOR 70 YEARS

Cliff4WD
Posts: 142
Joined: Fri Aug 10, 2018 2:39 pm
Location: Rye, East Sussex, UK

Re: Restoration

Post by Cliff4WD »

Big day today, decided it was time to put the LT95 back in. First though, I had to do a bit of tidying up and make some space. Shifted everything out the way and gave it a quick sweep.



Dug out the stored gearbox mounting brackets and bolts and spent some time cleaning threads and making sure nuts threaded on ok. Then prepped the space.


Dragged the crane up into place and set it up


Then wheeled the box up ready to lift it. I was knackered already. The LT95 is bl**dy heavy and my temp garage is a soil floor so not easy to shift heavy kit especially when the casters jam into the ground. ( I really should have put some boards down 🤔)


Started to lift it up...


...and struggled to move the crane and the lump into position


The photo doesn't tell the full story of the struggle I had getting this in position on my own. I had to jack up the chassis and move my axle stands half way through too. Got there eventually but it took a long time and a lot of struggling with a small blood sacrifice along the way. 😫

Seems my straps had shifted position a bit as well and one was fouling the mounting bracket holes, so had to "adjust" and faff about yet more time and effort.


Got there eventually and fitted the new rubber mounts and the mounting brackets...


Used genuine LR mounts for this.


Yeeehah! Thank the Lord 🙏🏻 finally in place and mounted (loosely) to chassis


Gave it a very quick clean to remove some of the grime that had accumulated since I did the rebuild last year.




I'm not sure I'll be able to walk tomorrow or be good for much at all, I'm definitely in pain and dog tired now. Not the fit young man I used to be anymore. ♿️ Still, job done and another step nearer the finishing line. But now time for 🍺🍺🍺🍺🍺
Cliff

1981 109 V8 Stage 1
2000 Discovery 2 Td5

109 V8: viewtopic.php?f=6&t=2161
My Disco Thread: http://www.thed2boysclub.co.uk/viewtopi ... =3&t=58130

LAND ROVER. TURNING OWNERS INTO PAUPERS FOR 70 YEARS

disco2hse
Posts: 1530
Joined: Sun Apr 27, 2008 3:51 am
Location: Auckland NZ

Re: Restoration

Post by disco2hse »

Good effort. Well done. Those cranes are a bugger to move with a heavy weight at the best of times.
Alan

1983 ex-army FFR 109 Stage 1
2005 Disco 2 HSE TD5
